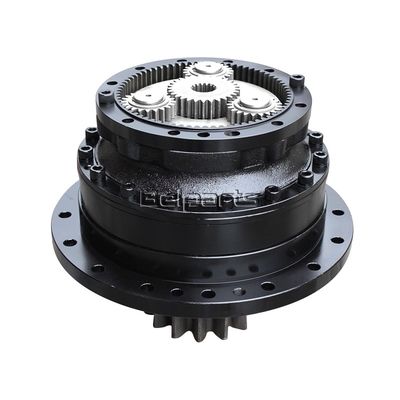

Belparts 굴삭기 DH290LC-V 2101-1025G Doosan 스윙 감속 기어박스 2101-1025E 2101-1025G
| 부품명 | 굴삭기 최종 감속 장치 |
| 모델 | DH290LC-V 2101-1025G |
| 부품 번호 | 2101-1025E 2101-1025G 2101-1025H 2423-1184D |
| 원산지 | 중국 광저우 |
| 보증 | 6개월 |
| 품목 상태 | 신품 |
| 브랜드 | Belparts |
| 최소 주문 수량 | 1개 |

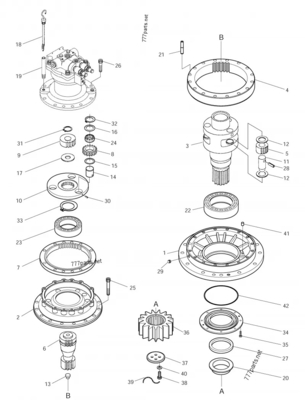

| # | 부품 번호 | 부품명 | 비고 | 수량 | 가격 문의 |
|---|---|---|---|---|---|
| 29 | 2181-1116D4 | PLUG, RECHECK | 97123-04111 | 1 | |
| 30 | 2123-1633D1 | PIN, SPRING | 3 | ||
| 31 | S6500450 | RING, SNAP | 1 | ||
| 32 | S6500500 | RING, RETAINING | 3 | ||
| 33 | S6500850 | RING, RETAINING | 1 | ||
| 34 | 2213-1053B | COVER, FRONT | 4 kg | 1 | |
| 35 | S0112261 | BOLT, LOCK | 8 | ||
| 36 | 2401-1031E | GEAR, PINION | 1 | ||
| 36 | 2401-1031F | GEAR, PINION | 1 | ||
| 36 | 2401-1031G | GEAR, PINION | 17 kg | 1 | |
| 37 | 2403-1039A | PLATE, LOCK | 1 kg | 1 | |
| 38 | 2120-1363 | BOLT | 4 | ||
| 39 | 2126-9001 | WIRE (1.4X250) | 2 | ||
| 40 | S5102901 | WASHER, SPRING | 4 | ||
| 41 | 2536-1002 | MAGNET | 1 kg | 6 | |
| 42 | 2180-1236 | O-RING ID221.94XW3.53 | 1 | ||
| - | 2101-1025E | SWING REDUCTION GEAR ASS'Y | 1 | ||
| - | 2101-1025G | REDUCTION GEAR ASS'Y | 1 | ||
| - | 2101-1025H | REDUCTION GEAR ASS'Y | 1 | ||
| - | 2101-1025I | REDUCTION GEAR ASS'Y | 337 kg | 1 | |
| 1 | 2423-1184D | CASING, FRONT | 38 kg | 1 | |
| 2 | 2423-1185 | CASING, MIDDLE | 31 kg | 1 | |
| 3 | 2112-1156C | SHAFT, DRIVE | 52 kg | 1 | |
| 3 | 2112-1156E | SHAFT, DRIVE | 43 kg | 1 | |
| 4 | 2104-1004C | GEAR, RING(NO.2) | 1 | ||
| 4 | 2104-1004E | GEAR, RING(NO.2) | 29 kg / 460*460*90 | 1 | |
| 5 | 2101-1006C | GEAR, PLANETARY(NO.2) | 3 | ||
| 5 | 2101-1006E | GEAR, PLANETARY(NO.2) | 7 kg | 3 | |
| 6 | 2101-1005E | GEAR, SUN(NO.2) | 1 | ||
| 6 | 2101-1005G | GEAR, SUN(NO.2) | 6 kg | 1 | |
| 6 | 2101-1005H | GEAR, SUN(NO.2) | 6 kg | 1 | |
| 7 | 2104-1005C | GEAR, RING(NO.1) | 8 kg | 1 | |
| 8 | 2101-1031 | GEAR, PLANETARY(NO.1) | 1 kg | 3 | |
| 9 | 2101-1032 | GEAR, SUN(NO.1) | 3 kg | 1 | |
| 10 | 2230-1034 | CARRIER | 8 kg | 1 | |
| 11 | 2123-1631B | PIN | 2 kg | 3 |
| SOLAR255 DH258 | 401-00352 | SWING MOTOR SOLAR255 |
| EX200-5 | 4330222 | SWING MOTOR EX200-5 |
| ZX200-3, ZX200-1 (ZX450) (M5X130) | 4423009 | SWING MOTOR ZX200-3, ZX200-1 (ZX450) (M5X130) |
| R330-9S DH258 | 31Q8-10130(70) | SWING MOTOR R330-9S |
| ЕС290 | 14524190 | Swing motor ЕС290 |
| EX60-2 | 9118328 | Swing gearbox |
| SK350-8 | M5X180 |  swing motor |
| E315D | 266-8046 | Swing motor assy |
| DX225 (M2X150) DH225-7 | k1000697a | SWING MOTOR SOLAR DX225 (M2X150) |
| SOLAR300, DX300LC DH300-7 | 401-00457B | SWING MOTOR SOLAR300, DX300LC |
| E320 | 1588986 | SWING MOTOR E320 (M5X130) |
| SK250-6E | LQ15V00015F2 | Swing motor SK250-6E |
| SK200-8 (M5X130) - | YN15V00035F1 | Swing motor SK200-8 (M5X130) - YN15V00035F1 |
| R250LC-7 | 31N7-10170 | Swing motor R250LC-7 TIP 2 - 31N7-10170 |
