Kobelco SK250-8 SK480-8 LQ32W01010P1 Planetary Gear Parts Swing Gearbox 2nd Sun Gear

상품

Kobelco SK250-8 SK480-8 LQ32W01010P1 Planetary Gear Parts Swing Gearbox 2nd Sun Gear

모크:	1PC
가격:	Negotiated price
표준 포장:	나무 상자 / 통 / 일반 배송 패키지
배달 기간:	2 작업 일 이내에
지불 방법:	전신환, 알리바바 거래 보험, 페이팔
공급 능력:	달 당 1000 조각

자세한 정보

제품 설명

자세한 정보

원래 장소

브랜드 이름

Belparts

모델 번호

SK250-8 SK480-8 SK250LC SK235SR

상품 이름:

행성 장치

기계 몰델:

SK250-8 SK480-8 SK250LC SK235SR

부품번호:

230-00067

시장 후에

강조하다:

LQ32W01010P1 유성 기어 Parts

SK480-8 유성 기어 Parts

SK250-8 변동 기어박스 2번째 선 기어

제품 설명

Kobelco SK250-8 SK480-8 LQ32W01010P1 Planetary Gear Parts Swing gearbox 2nd Sun Gear

Description

Appliion	Excavator
Part name	Swing gearbox 2nd sun gear
Model	Kobelco
Model	SK250-8 SK480-8 SK250LC SK235SR
MOQ	1PC
Warranty	3 months
Part number	LQ32W01010P1
Delivery Time	Within 2 days after receiving the payment

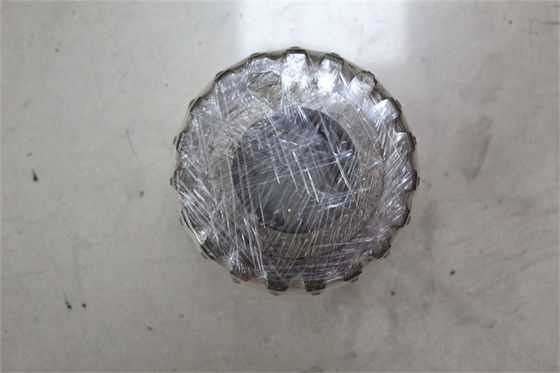

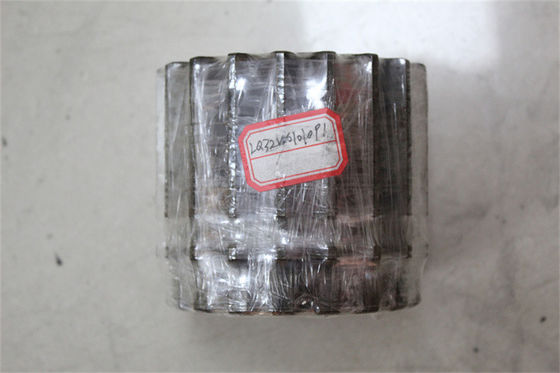

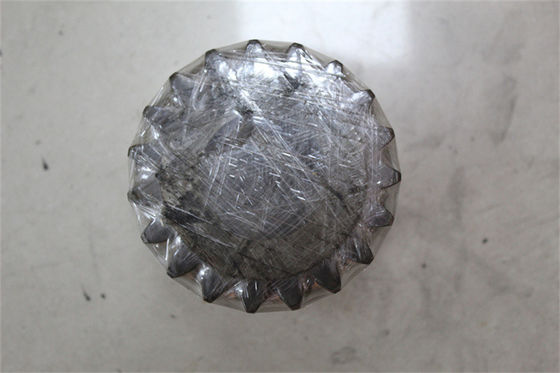

Pictures

Drawing of the planrtary gear

List of spare parts

Pos.	Part No	Qty	Parts name	Comments
. .	LQ32W00007F1	[1]	HYDRAULIC MOTOR	KOB F1 ONLY, Serial Range: -5/2/00 Superseded by part number: LQ32W00007F3
. .	LQ32W00007F3	[1]	REDUCER	KOB REDUCTION ASSY, SWING (F2 ONLY), Start Serial: 5/2/00
1.	LQ32W01002P1	[1]	DRIVEN SPROCKET	KOB SHAFT, PINION
2.	ZD11G11000	[1]	O-RING,109.40mm ID x 115.60mm OD x 3.10mm	KOB ID 109.40 ± 0.91 x OD 115mm
3.	LQ32W01014P1	[1]	BUSHING	KOB SLEEVE
4.	LQ32W01021P1	[1]	SEAL	KOB SEAL, OIL, (200.235.26)
5.	2418T17494	[1]	SPACER	KOB
6.	ZS23C10030	[14]	SCREW,Hex Socket Head, M10 x 30mm	KOB M10x1.50x30mm Superseded by part number: ZS28C10030
7.	ZE82T12000	[1]	PLUG	KOB 3/4" PT
8.	LQ32W01003P1	[1]	RETAINER	KOB
9.	LQ32W01016P1	[1]	SPHERICAL BEARING	KOB SPHERICAL, (110.240.80)
10.	LQ32W01001P1	[1]	HOUSING	HOUSING
11.	LQ32W01012P1	[1]	SPACER	KOB
12.	ZS83C20030	[2]	SCREW	KOB Set -- M20x2.50x30mm
13.	2420T6698D6	[1]	PIPE	KOB
14.	ZG31U12000	[1]	ELBOW	KOB
15.	LQ32W01015P1	[1]	SPHERICAL BEARING	KOB SPHERICAL (100.180.46)
16.	ZR16X10000	[1]	RING	KOB Retaining -- ID 94.50 x OD 119 x Th 3.0mm
17.	2413J376	[1]	DIFF. SPIDER	KOB
18.	LQ32W01010P1	[1]	GEAR	KOB SUN
19.	LQ32W01005P1	[1]	RING GEAR	KOB
20.	LQ32W01007F1	[1]	SPIDER	KOB ASSY
21.	2410T352	[4]	ROLLER SHAFT	KOB
22.	ZP26D08032	[4]	PIN	KOB Roll -- OD 08 x 32mm Long
23.	LQ32W01018P1	[8]	WASHER	KOB THRUST
24.	LQ32W01009P1	[4]	DRIVEN SPROCKET	KOB PINION
25.	2425Z541	[4]	NEEDLE BEARING,40mm ID x 54mm OD x 50mm W	KOB NEEDLE (40.54.50)
26.	LQ32W01013P1	[8]	WASHER	KOB THRUST
27.	2425Z540	[4]	NEEDLE BEARING,40mm ID x 48mm OD x 25mm W	KOB NEEDLE (40.48.25)
28.	LQ32W01011P1	[4]	DRIVEN SPROCKET	KOB PINION
29.	ZR16X04000	[5]	RING	KOB Retaining -- ID 37 x OD 40 x Th 1.8mm
30.	ZS23C14150	[14]	SCREW,Hex Socket Head, M14 x 150mm	KOB M14x2.0x150mm, (F1 Only)
31.	LQ32W01020P1	[1]	SUN GEAR	KOB
32.	2420T4530	[2]	SCREW,M14 x 2 x 185mm	KOB M14x2.0x185mm, (F1 ONLY)

FAQ

1.If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the size for reference.

2.What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.

3.How can I pay the order?
We can receive payment through T/T, Western Union, Paypal(for small amount), trade assurance.

4.When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the order.

5.How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide pictures for us and we will check. After it is confirmed, pls return to us , we will offer the correct item.

About company

Exhibition

Excavator parts

Delivery

Packaging Details:

1.According to orders,pack the spare parts one by one by oil paper;

2.Put them into small carton boxes one by one;

3.Put the packed small carton boxes into bigger carton boxes one by one;

4.Put the bigger carton boxes into wooden boxes if necessary especially for the shipments by sea.

5. Goods is packed by oil paper and plastic bags inside

6.Using wooden  package.

7.We support the custom-made demand for package

Our advantage

1. Quality and delivery under control.

2. Original packing, neutral packing or customized packing.

3. Our price is very competitive compared with other suppliers'.

4. If you only can supply the part No. No problem, just send thepart no. to me, I will give you the right product. We have a good system about part No

5. More than 10 years of professional manufacture experience.

6. Small order allowed
